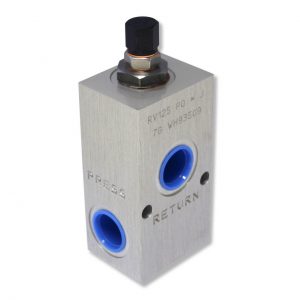

RV125 (Relief valves)
RV125(Relief valves)
Technical Overview
A range of 2 & 3-port direct acting or pilot operated in-line pressure relief valves, ideal for providing protection against the overloading of system components
- Maximum pressure: 210 bar (3000 psi)
- Maximum flow 125 lpm (33 US gpm)
- BSP and UNF ports available
- Steel components in aluminium body
- Relief valve adjustable rom 80 to 210 bar
- Pressure gauge port on some models
Cartridges: Choose between a direct acting for high tolerance to contamination or pilot operation for quiet, smooth and accurate pressure control
